Bluetooth Wireless OBD2 Car Auto Diagnostic Scan Tools KONNWEI KW902 Mini ELM327

Name: Bluetooth Wireless OBD2 Car Auto Diagnostic Scan Tools KONNWEI KW902 Mini ELM327
Brand: KONNWEI
Price: 1 USD

China Bluetooth Wireless OBD2 Car Auto Diagnostic Scan Tools KONNWEI KW902 Mini ELM327 wholesale

Brand Name : KONNWEI

Model Number : KW902

Certification : FCC CE Rohs

Place of Origin : China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal.

Supply Ability : 40000 pieces per month

Delivery Time : 600pieces in 7days

Packaging Details : 12*7.5*4cm

Brand : KONNWEI

Name : OBD II Bluetooth Car Scanner car diagnostic tool

Connection : Bluetooth 3.0

Function : Read and erase fault codes, read live sensor date

Protocols : ISO 9141 KWP2000 SAE J1850 CAN J1850 VPW J1850 PWM

Available : Universal Bluetooth V1.5 ELM327 Compatible Device

Display : Smart phone or PC with bluetooth function

Description : OBD2 automotive fault Data code reader

Contact Now

KONNWEI KW902 Mini ELM327 Bluetooth Wireless OBD2 Car Auto Diagnostic Scan Tools

Model	Konnwei KW902 Bluetooth 3.0
Function	Car engine tester bluetooth connect
LCD Screen Size(Inch)	with Bluetooth logo
Application	Can detect 12V gasoline and diesel cars
IC Chip	25K80 Chip

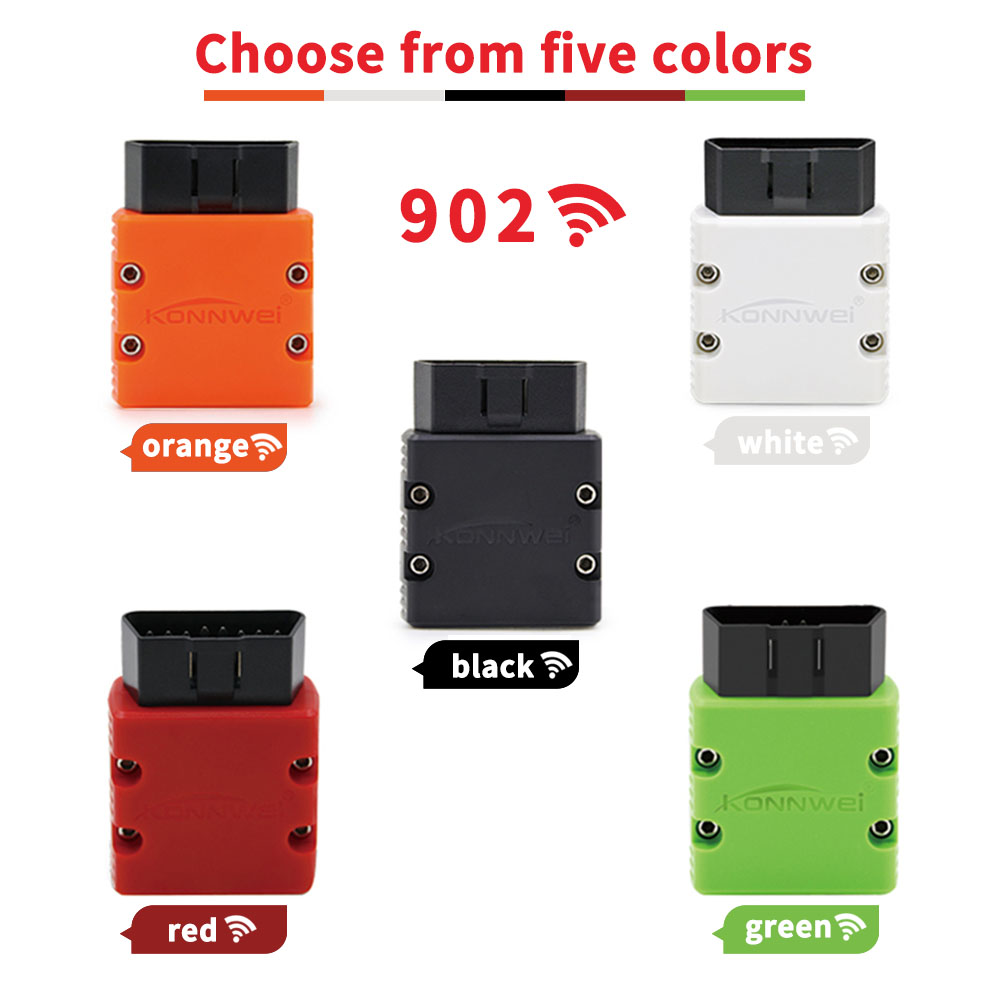

Color	White/ Red/ Green/ Black/ Orange
Languages	English is default language
Support systems	Android mobile phone, free software torque; Don't support upgrade system and print
Battery function	don't support battery test function
Support protocols	ISO 9141 KWP2000 SAE J1850 CAN J1850 VPW

Bluetooth Wireless OBD2 Car Auto Diagnostic Scan Tools KONNWEI KW902 Mini ELM327

ELM327 V1.5 (Bluetooth) Function List:
1. Read diagnostic trouble codes, both generic and manufacturer specific
2. Clear trouble codes and turn off the for MIL (for "Check Engine" light)
3. Display current sensor data, including:
4. Engine for RPM
5. Calculated Load Value
6. Coolant Temperature
7.Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position

ELM327 V1.5 (Bluetooth) Features:

* Small size, compact structure. Plug and never unplug
* Stable wireless connection.
* No wires or batteries (adapter is powered by the 12V for Vehicles battery)
* 30 Minutes without communication, it will automatically go to sleep mode.
* Ultra low cumsumption in sleep-mode, less than 10MA
* Supports almost OBDII protocols, widest coverages
* The adapter uses the fast communication mode and most reliable for PIC18F25K80 chips, up to 60 PID/S.

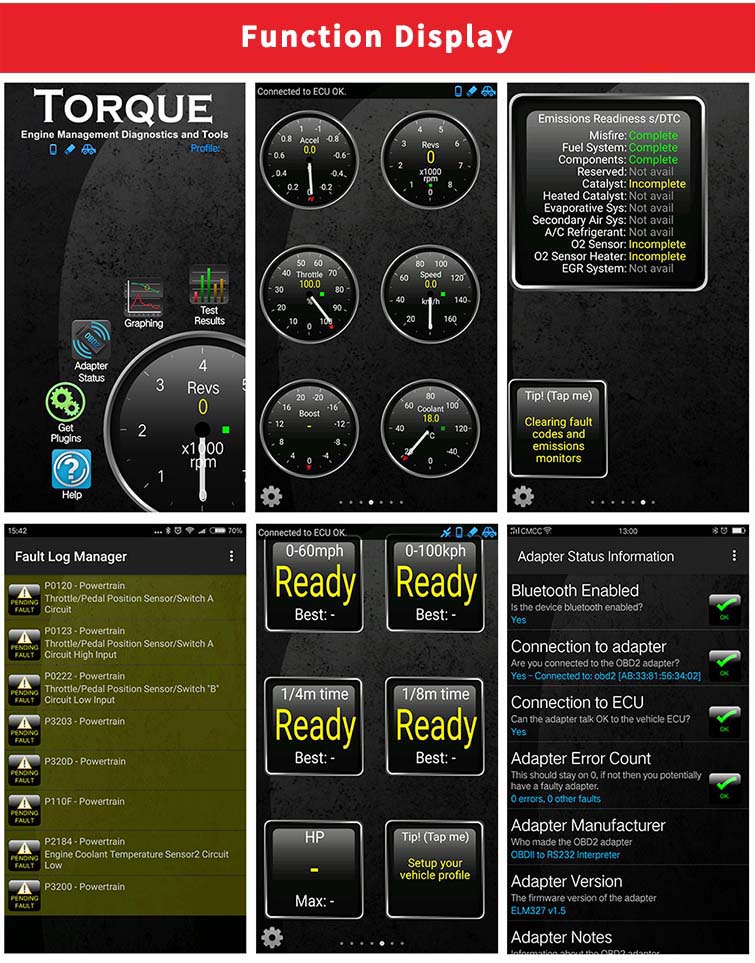

Functions

Measure the fuel consumption.
Display real-time operating performance of the car, such as momentum,vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.
Turn off the MIL (signal Check Engine).
Download data to external media in a variety of formats for later printing.
Record various parameters, display graphics in real time, and more.

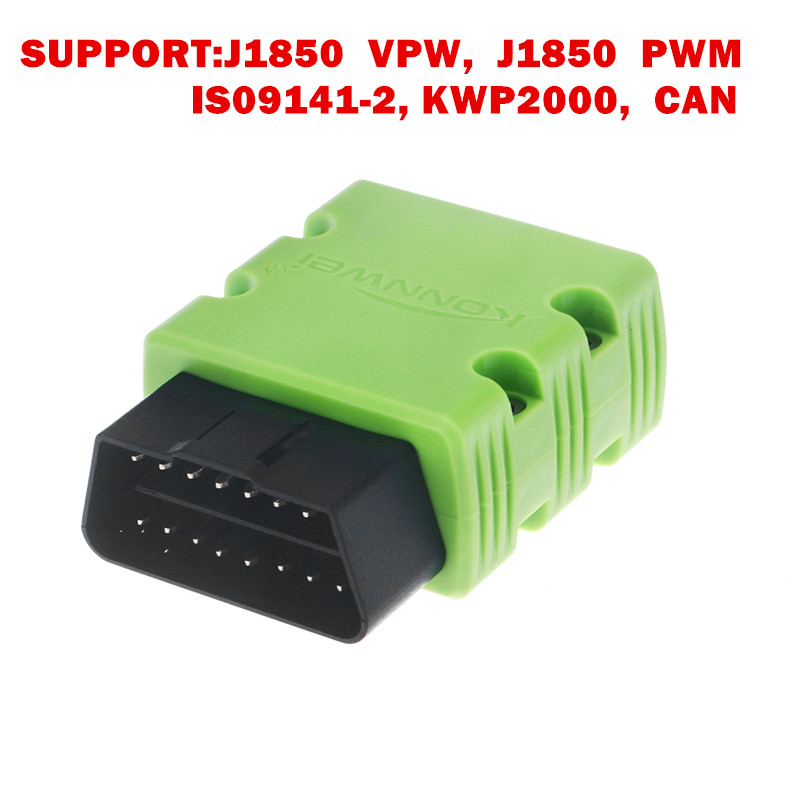

protocols

SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud) A.SAE J1939 CAN(29bit ID,250*Kbaud) B.USER1 CAN(11*bit ID,125*Kbaud) C.USER2 CAN(11*bit ID,50*kbaud)

Bluetooth Wireless OBD2 Car Auto Diagnostic Scan Tools KONNWEI KW902 Mini ELM327

Buyer Notice :

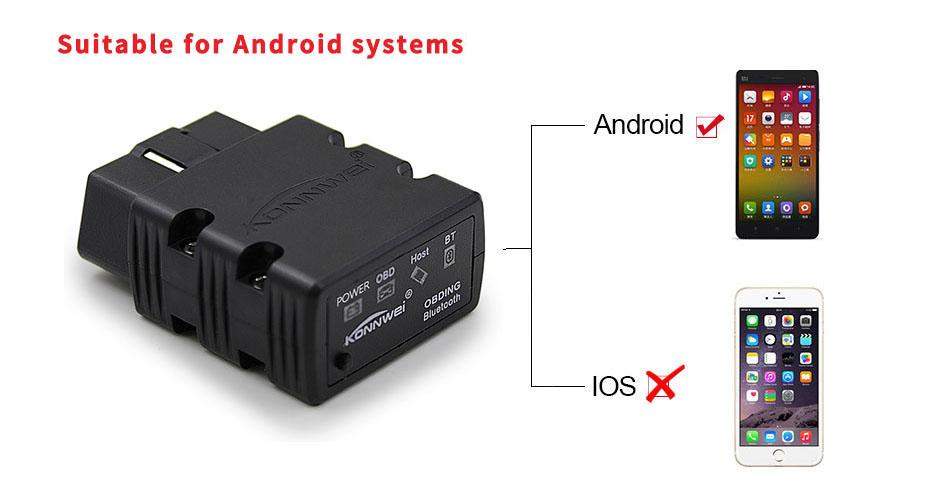

1. This device can't work for iPhone and for car DVD.
2. This device will not suitable for windows pc or not for laptops which don't support bluetooth.

Universal Bluetooth V1.5 ELM327 Support Language:
These software support a lot of languages, like Russian, Spanish, French, German, English, Italian, Portuguese...etc.
( you can download the app : For Torque, to see whether it include your country language.)

Bluetooth Wireless OBD2 Car Auto Diagnostic Scan Tools KONNWEI KW902 Mini ELM327
